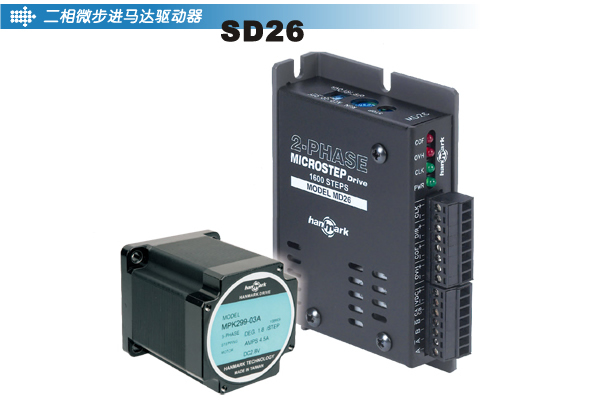

2 Pase Micro Stepping Motor DriverLocation:Home > Products > 2 Pase Micro Stepping Motor Driver

HANMARK is guarantee to quality!

Key Features

1.Low vibration, high resolution, 1600 steps per loop(each step at 0.225°).
2.DC15~40V Power Input.
3.Can choose from 16 driving current adjustments.
4.Automatic-Current-Down (ACD) function for reduced motor heat.
5.Overheating protection and Signal Output function.
6.Motor Current Off (COF) function can be accomplished externally.
7.Removable connector for easy connection.
8.High speed Photo Coupler to increase Input pulse frequency.
9.Self-testing function.


•Power:DC 15V ~ 40V @2A
•Drive current:0.3A ~ 1.0A
•Resolution:0.225°/S, 1600s/r
•Control mode:Single-pulse(1P), two-pulse(2P)
•Max pulse speed:60KHz
•Pulse width:5us(Min)
•Direction response:20us(Min)
•Input signal:+4 ~ +10V, <20mA
•Input signal impedance:220 ohm
•Output signal:Open collector, 24V, 10mA(Max)
•Noise isolation:Use of photo coupler
•Connection method:Removable connector ambient
•Ambient temperature:0~+40℃
•Ambient moisture:<85%RH
•Dimension(mm):100(L) x 62(W) x 22(H)
