Key Features

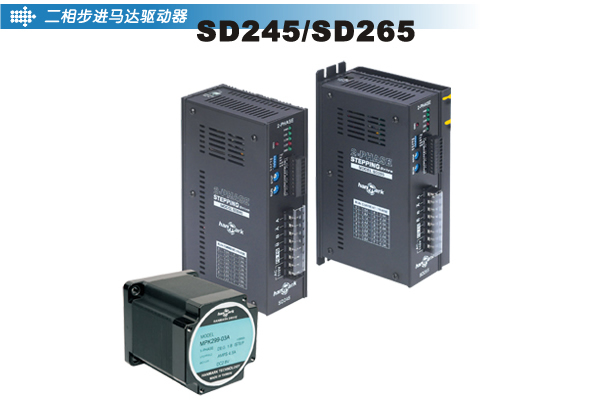

manufacturers of 2 phase stepper motor driver that has protection against overheating.
1.AC110v power input. Suitable for high-speed high torque applications.
2.Can specify driving current, reaching highest reading of 4.0A(SD245),6.0A(SD265) per phase.
3.Constant current bi-polar driving method, suitable for 4-lead-wire,6-lead-wire or 8-lead-wire 2-phase step motors.
4.Excitation mode can be selected from full-step or half-step.
5.Provide two methods of pulse input: Single-pulse(1p), and two-pulse(2p).
6.Can adjust running current and stop current for optimal motor revolving performance.
7.Overheating protection and output to ensure product safety.
8.Auto-current-down function for reduced motor heat.
9.Step zero output, and motor current off (cof) functions, can be used for external control.
10.Self-testing function.
11.High speed cpld component design, enhances stability of product.
12.Drive current using soft-up method to prevent sudden burn-out of driver.
13.LED displays revolving status. Input and output both use photo.
14.Coupler to provide noise isolation.
15.Special design of large aluminum alloy extrusion heat sink body.

Specifications:

•Power：Single-phase AC110V±10%, 50/60Hz
•Drive current：1.0A~4.0A(SD245), 1.5A~6.0A(SD265)；(16 Multi-step current control)
•Method：Constant current (Bipolar)
•Resolution：Full step (1.8°/s , 200s/r), half step (0.9°/s , 400s/r)
•Control mode：Single-pulse(1P), two-pulse(2P)
•Auto-current-down：30~70% (16 Multi-scale current control)
•Max pulse speed：60KHz
•Pulse width：5us(Min)
•Direction response：10us (Min)
•Input signal：+4 ~ +10V, <20mA
•Input signal impedance：220Ω
•Output signal：Open collector, 24V, 10mA(Max)
•Noise isolation：Use of photo coupler
•Connection method：Removable connector
•Ambient temperature：0 ~ +40℃
•Ambient moisture：<85%RH
•Dimension(LxWxH)：185 x 107 x 52mm(SD245)
                   207 x 109 x 69mm(SD265)
•Weight：950g(SD245), 1200g(SD265)
